Description

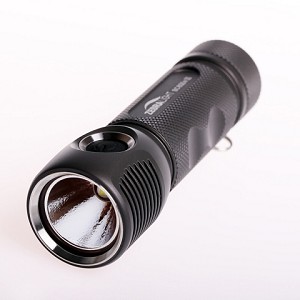

Cree XHP50.2 Neutral White LED

Nominal CCT: 4500K

CRI: 80+

Tint deviation: 3-step

User Selectable Levels: 3 main levels (High, Medium and Low). Each main level can be programmed to one of its two sub-levels. The second sub-level of the each main levels can be further programmed to different brightness levels.

Light Output (runtimes)

High: H1 2300 Lm (PID, approx. 1.8 hours) or H2 1311 Lm (PID, approx. 2 hours)/705 Lm (PID, approx. 2.5 hours)/358 Lm (5.1 hours)

Medium: M1 171 Lm (12.1 hours) or M2 77 Lm (26 hours)/33 Lm (2.5 days)/13 Lm (6 days)

Low: L1 5.0 Lm (13.5 days) or L2 1.8 Lm (1 month)/0.6 Lm (2 months)/0.2 Lm (3.5 months)

Beacon Strobe Mode: 0.2Hz Beacon at Low / 0.2Hz Beacon at H1 / 4Hz Strobe at H1 / 19Hz Strobe at H1

Operating Voltage Range: 2.7V – 6.0V

Battery: One 18650 size (i.e. unprotected, 65.0-65.2 mm long) 3.6-4.35V li-ion rechargeable. Batteries are not included in the package.

Parasitic Drain: Negligible (much less than the self discharging of a battery)

Beam Type

80 degree spill

14 degree hot spot

Dimensions

Head Diameter: 1.2 inch (30 mm)

Body Diameter: 0.98 inch (25 mm)

Length: 3.8 inch (96 mm)

Weight

2.26 oz (64 gram) without battery

Features

PID thermal regulated outputs (three highest output levels)

Builtin battery protections with continuously monitored temperature, current, and voltage, plus a (2.7V) low voltage cutoff

Battery capacity indicator (LED flashes 1-4 times, 4 short clicks to start)

Automatic stepping down from High to Medium, and from Medium to Low when battery capacity is low

Durable electronic soft-touch switch

Smart user interface provides fast and easy access to all brightness levels and beacon-strobes.

Precision machined unibody casing from premium grade aluminum bar stocks

Proprietary heat sinking design bonds the LED board directly to the unibody aluminum casing

Durable natural hard anodized finish (Type III Class I)

Sealed and potted LED driver circuitry

Tempered optical grade glass

Orange peel textured reflector

Battery reverse polarity protection

Pocket clip

Lanyard ring

Waterproof to IPX8 (2 meters, 30 minutes)
